| الاسم التجاري: | JCDRILL |
| رقم الطراز: | JC950 |
| الـ MOQ: | 1 مجموعة |
| السعر: | Negotation |
| شروط الدفع: | / تي تي، خطاب الاعتماد، ويسترن يونيون |
| القدرة على التوريد: | 2000 مجموعة |

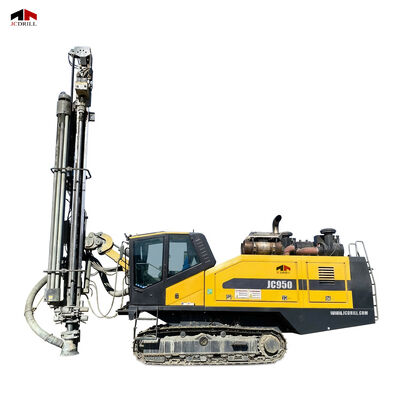

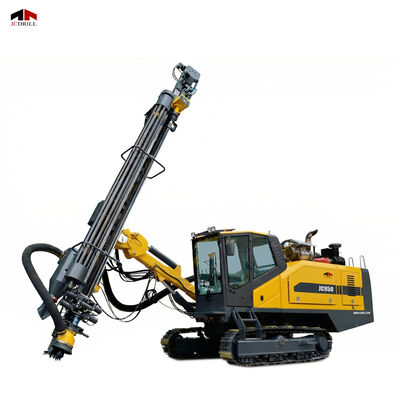

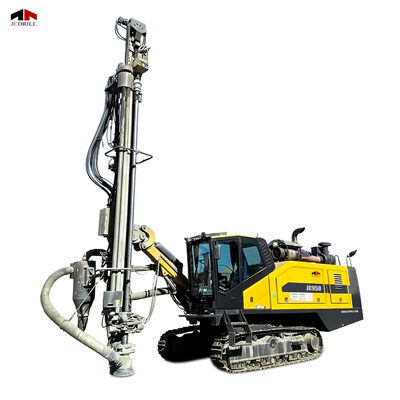

The JC950 is a fully hydraulic open-pit drilling rig, equipped with a cabin, an automatic rod handling system, and a dust removal system.
It is easy and comfortable to operate, with stable and superior performance, high efficiency, and environmentally friendly features.
This equipment covers a drilling range of φ115-152mm, with a working pressure of 2.0 MPa and an air supply of 19 m³/min. It provides reliable support for blast hole drilling in a wide range of open-pit projects, including metallurgy, mining, building materials, railways, hydropower construction, national defense construction, and earthwork.
| Specification | Unit | JC950 |
|---|---|---|
| Rock Hardness | F=6-20 | |
| Hole Diameter | mm | 90-203 |
| Hole Depth | m | 21 |
| Drill pipe | mm | 89 |
| Rotation Torque | Nm | 3500/4300/5500 |
| Rotation Speed (Normal and Fast) | rpm | 0-110 |
| Feeding System | ||
| Feed stroke | mm | 5860 |
| Feeding force | kN | 30 |
| Feeding speed | m/min | 75 |
| Engine | ||
| Manufacturer | CUMMlNS | |
| Rated Horse power | Hp | 430 |
| Air Compressor | ||
| Brand | Atlas Copco | |
| Flow rate | M³/min | 25 |
| Pressure | Bar | 21 |
| Dust Collector | ||
| Motor speed | Rpm | Hydraulic, dry |
| General | ||
| Max. Travel Speed (Slow/Fast) | Km/h | 2/3 |
| Gradeability | ° | 24 |
| Net Weight | kgs | 19000 |
| Shipping Dimension (L×W×H) | mm | 12000×2700×3100 |
| Ground Clearance | mm | 252 |
CUMMlNS Engine – Reliable Power Source
JC950 is powered by a CUMMlNS diesel engine, delivering stable, reliable power for continuous drilling operations. CUMMlNS engines are globally recognized for durability, fuel efficiency and ease of service, ensuring long-term dependable performance.
Excellent Maintenance Performance
The rig is designed with excellent maintenance accessibility, allowing easy inspection, servicing and component replacement. This design significantly reduces downtime and lowers operating and maintenance costs.
Stable & Reliable Drilling Performance
JC950 is engineered as “a rig you can rely on”, emphasizing stable operation, consistent output and dependable drilling performance under demanding working conditions.
Robust Structure & Long Service Life
The rig features a solid and durable structure designed for long-term use in exploration projects, ensuring high reliability during extended drilling operations.
Suitable for Continuous Field Operation
With its reliable power system and easy-maintenance design, JC950 is well suited for long-duration field work, especially in projects where equipment reliability is critical.
Geological exploration
Mineral exploration projects
Engineering geological survey
Exploration drilling with high reliability requirements
Long-duration drilling operations in field environments
Q1: What engine is used on JC950?
A: JC950 is equipped with a CUMMlNS diesel engine, known for reliable performance, global service support and long service life.
Q2: What are the main advantages of JC950?
A: The main advantages include reliable CUMMlNS power, excellent maintenance performance, stable operation, and robust structural design suitable for continuous drilling work.
Q3: Is JC950 suitable for long-term field operations?
A: Yes. JC950 is designed for continuous and long-duration field operations, with a focus on reliability and ease of maintenance.
Q4: Is the rig easy to maintain?
A: Yes. The rig emphasizes maintenance-friendly design, allowing convenient access to key components, reducing downtime and improving overall efficiency.
